I would like to introduce our company Pavithra Engineering Works that has been in business Radio remote control system for the past 9 years. We have been an established and popular company with an excellent track record for the best customer satisfaction. We have never compromised on the quality and the services provided to the customer. We believe in keeping the customers happy and providing them with products at a very competent price. We have an excellent staffs who will guide you with their best ideas ....
Infomedia Services is the leading Publisher of Yellowpages and a trusted print directory service provider, that has been in the directional media communications for years.

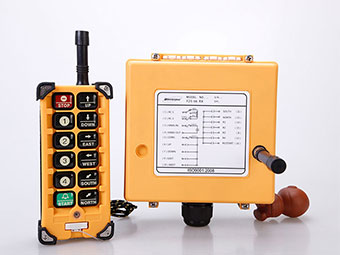

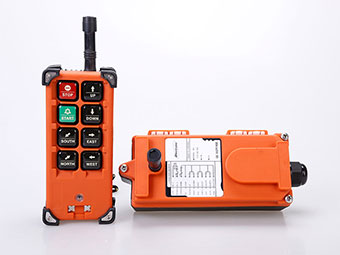

8 push buttons with 7 single-speed buttons and 1 stop buttons
Control points up to 6
With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
For emergency circumstances, you can take out the magnetic key to cut down the power on a moment.
Set the internal functions by computer interface
Up/down, east/west, south/ north push button can be set interlock or not.
Spare 1 key can be set start, speed up, jump strokes, ordinary etc.

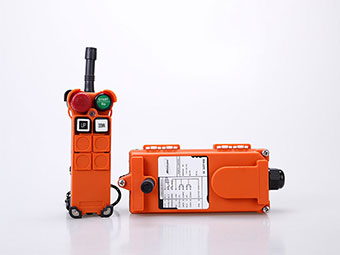

Two double speed buttons+START button+ EMS button
Control distance:up to 100m
Certificate: CE, FCC ISO9001：2008
Operation frequency:310-331Mhz or 425-446Mhz
Buttons:6 single speed
Relays:6 Relays control functions,1 relay control EMS and 1 relay reserve
Working temperature:-35℃~+80℃
Material:Glass-fiber nylon-6

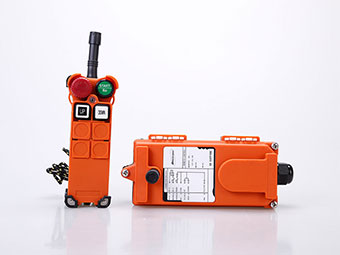

Two single speed buttons+START button+ EMS button
Control point up to 2
With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
Set the internal functions by computer interface
UP, DOWN push button can be set jump strokes, ordinary, interlock or not.
The cable can be set aviation plug

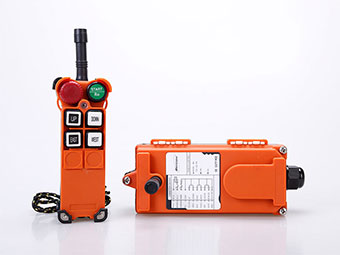

4 double speed buttons + START button+ STOP button
Control points up to 6
With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
Set the internal functions by computer interface
Up/down, east/west, south/ north push button can be set interlock or not.
The control distance can reach 100m

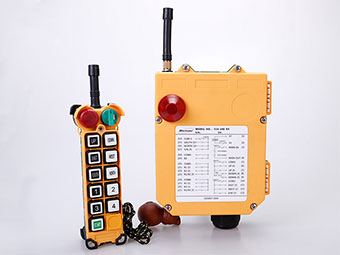

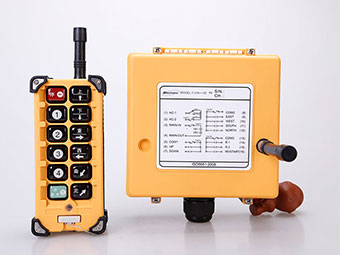

10 push buttons, include ON/OFF, UP/DOWN, EAST/WEST, SOUNTH/NORTH, 1/2, 3/4(useless)..
It has 8 control motions
Earthquake-reduction design, to avoid damage from sudden shake and falling.
For emergency circumstances, you can take out the magnet key to cut down the power on a moment.
Water-proof, IP 65, can be used inner or outside.
Free transmitter protecting cover available.
The control distance can reach 100m

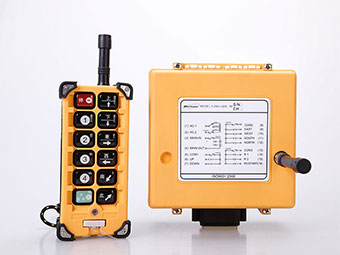

10 push buttons, include ON/OFF, UP/DOWN, EAST/WEST, SOUNTH/NORTH, 1/2, 3/4
Total 10 control motions
Earthquake-reduction design, to avoid damage from sudden shake and falling.
For emergency circumstances, you can take out the magnet key to cut down the power on a moment.
Water-proof, IP 65, can be used inner or outside.
Free transmitter protecting cover available.
Control distance:up to 100m
Certificate: CE, FCC ISO9001：2008
Operation frequency:310.00~330MHz
Buttons :8 Single Speed,1 START,1 STOP
8 Relays control functions,1 relay control EMS and 1 relay reserve
Working temperature :-35℃~+80℃
Material :Glass Fiber-Reinforced Nylon-6

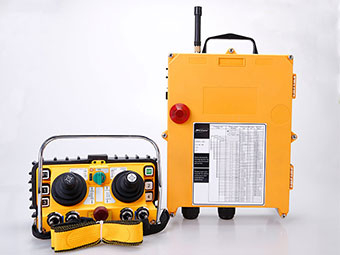

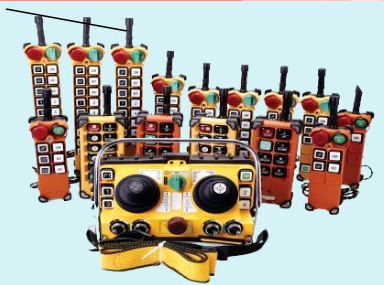

Model: F24-60 Radio Remote Control
Type: Joystick-based remote control system.
Features: Joystick, push buttons, and toggle switches.
Applications: Material handling.
Range: Up to 100 meters.
Temperature: Operates from -30°C to +80°C.
Power: Receiver: 110/25V; Transmitter: 3V.
Decoding: Microprocessor based.
Dimensions: Transmitter: 186 x 61 x 51 mm; Receiver: 290 x 230 x 70 mm.
Weight: Transmitter: 1225g (approx); Receiver: 2200g (approx).

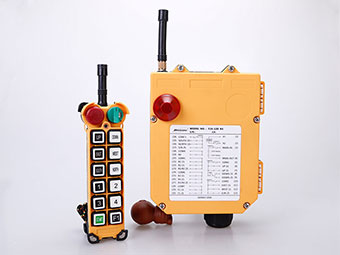

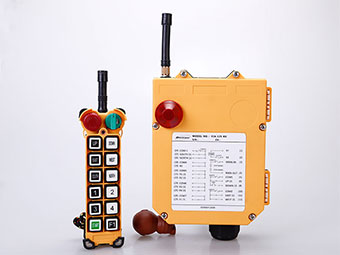

11 Double step buttons, 1 Start/Alarm button, 1 Mushroom Emergency stop, 1 Rotary key switch
Powered by size AA x 2 Alkaline or Rechargable Batteries
Size : 180 x 61 x 51 mm (Protrusion excluded)
Providing 18 control contacts
The best seller for cranes and application that needs 6~12 movements in single or double speed.
F24 is designed to use in construction cranes, bridge cranes and also in special applications with durability and low cost.
Ultra-low battery power consumption (Eco-Friendly)
Pre-wiring receiver made the installation easy and fast ever!
Durable nylon-fiber housing for extra shock resistance
Low power consumption with 2 AA batteries (last up to 2 months in normal operation)
Operating range up to 100 meters
Durable nylon-fiber housing for extra shock resistance
Low power consumption with 2 AA batteries (last up to 2 months in normal operation)
Operating range up to 100 meters
Operating temperature range -35°C to +80°C
Time saving, in avoid of wasting time on connection time to time.
Easy to connect and remove, can avoid error connection which caused by times re-connection.
Space-saving
Automatic frequency adjustment & transmitter and receiver paring freely.
Plus LED indicator light on the receiver, prompting the trouble in time.
Widely frequency: 425.5925~446.9925MHz
Push button sticker use arrow, without language restriction. If you need we can also offer you English or Chinese sticker.
In order to solve the push button block, we made the push button groove more bigger than ever.
